NV32/40
NV32/40
Fuel Type
Fuel Type
Fuel Type
Speed (r/min)
Speed (r/min)
Speed (r/min)
Power (kW)
Power (kW)
Power (kW)
Displacement (L)
Displacement (L)
Displacement (L)
Diesel
Diesel
Diesel
720-750
720-750
720-750
6000-9000
6000-9000
6000-9000
32.17 L
32.17 L
32.17 L

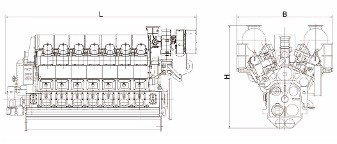

Outline
Outline
Bore x Stroke: 320x400 mm
SFOC: 181[+5%] g/kW • h
SLOC: 0.6 g/kW • h
Start Method: Compressed air
Rotate Direction: Clockwise (aft. end)
Emission: IMO Tier II, Tier III (SCR)
Bore x Stroke: 320x400 mm
SFOC: 181[+5%] g/kW • h
SLOC: 0.6 g/kW • h
Start Method: Compressed air
Rotate Direction: Clockwise (aft. end)
Emission: IMO Tier II, Tier III (SCR)
Bore x Stroke: 320x400 mm
SFOC: 181[+5%] g/kW • h
SLOC: 0.6 g/kW • h
Start Method: Compressed air
Rotate Direction: Clockwise (aft. end)
Emission: IMO Tier II, Tier III (SCR)

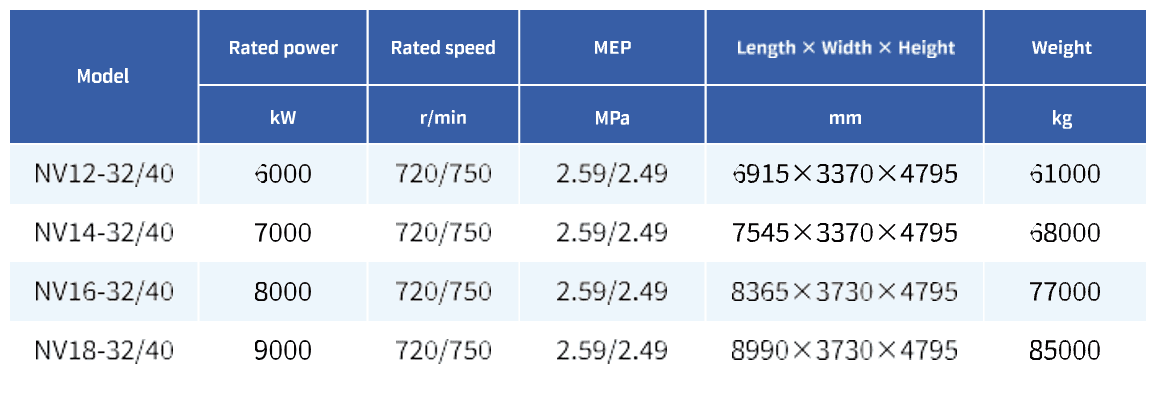

Specifications
Specifications
