Detailed Information
Detailed Information
NL9340
NL9340
Fuel Type
Fuel Type
Fuel Type
Speed (r/min)
Speed (r/min)
Speed (r/min)
Power (kW)
Power (kW)
Power (kW)
Displacement (L)
Displacement (L)
Displacement (L)
Diesel
Diesel
Diesel
525-660
525-660
525-660
2970-5737
2970-5737
2970-5737
43.58 L
43.58 L
43.58 L
Outline
Outline
Bore x Stroke: 340x480 mm
SFOC: 182[+3%] g/kW • h
SLOC: 0.6 g/kW • h
Start Method: Compressed air
Rotate Direction: Clockwise (aft. end)
Piston Lifting Height: 2400 mm
Emission: IMO Tier II, TIer III (SCR)
Bore x Stroke: 340x480 mm
SFOC: 182[+3%] g/kW • h
SLOC: 0.6 g/kW • h
Start Method: Compressed air
Rotate Direction: Clockwise (aft. end)
Piston Lifting Height: 2400 mm
Emission: IMO Tier II, TIer III (SCR)
Bore x Stroke: 340x480 mm
SFOC: 182[+3%] g/kW • h
SLOC: 0.6 g/kW • h
Start Method: Compressed air
Rotate Direction: Clockwise (aft. end)
Piston Lifting Height: 2400 mm
Emission: IMO Tier II, TIer III (SCR)

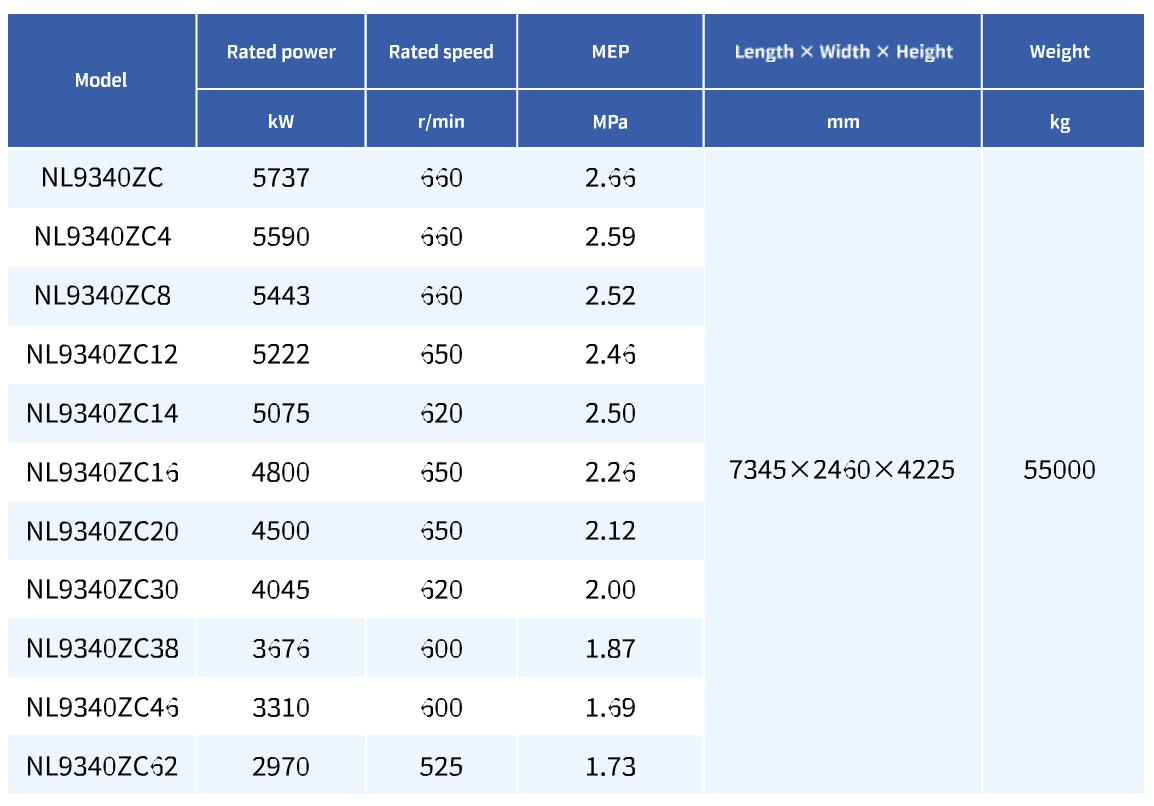

Specifications
Specifications
