Detailed Information
Detailed Information
NL6340
NL6340
Fuel Type
Fuel Type
Fuel Type
Speed (r/min)
Speed (r/min)
Speed (r/min)
Power (kW)
Power (kW)
Power (kW)
Displacement (L)
Displacement (L)
Displacement (L)
Diesel
Diesel
Diesel
500-650
500-650
500-650
2200-3600
2200-3600
2200-3600
43.58 L
43.58 L
43.58 L

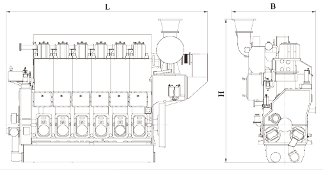

Outline
Outline
Bore x Stroke: 340 x 480 mm
SFOC: 182[+3%] g/kW • h
SLOC: 0.6 g/kW • h
Start Method: Compressed air
Rotate Direction: Clockwise (aft. end)
Piston Lifting Height: 2400 mm
Emission: IMO Tier II, Tier III (SCR)
Bore x Stroke: 340 x 480 mm
SFOC: 182[+3%] g/kW • h
SLOC: 0.6 g/kW • h
Start Method: Compressed air
Rotate Direction: Clockwise (aft. end)
Piston Lifting Height: 2400 mm
Emission: IMO Tier II, Tier III (SCR)
Bore x Stroke: 340 x 480 mm
SFOC: 182[+3%] g/kW • h
SLOC: 0.6 g/kW • h
Start Method: Compressed air
Rotate Direction: Clockwise (aft. end)
Piston Lifting Height: 2400 mm
Emission: IMO Tier II, Tier III (SCR)

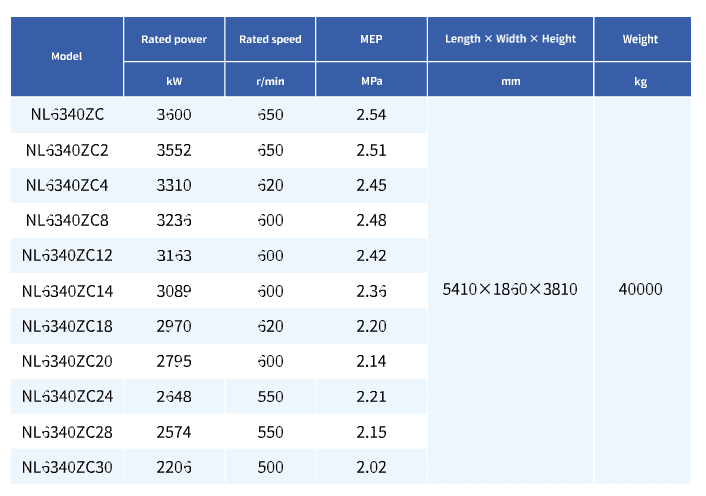

Specifications
Specifications
