Detailed Information
Detailed Information
N8300
N8300
Fuel Type
Fuel Type
Fuel Type
Speed (r/min)
Speed (r/min)
Speed (r/min)
Power (kW)
Power (kW)
Power (kW)
Displacement (L)
Displacement (L)
Displacement (L)
Diesel
Diesel
Diesel
500-750
500-750
500-750
1100-3080
1100-3080
1100-3080
26.87 L
26.87 L
26.87 L

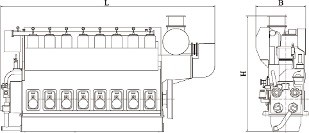

Outline
Outline
Bore x Stroke: 300 x 380 mm
SFOC: 195[+3%] g/kW • h
SLOC: 0.6 g/kW • h
Start Method: Compressed air
Rotate Direction: Clockwise (aft. end)
Piston Lifting Height: 2600 mm
Emission: IMO Tier II
Bore x Stroke: 300 x 380 mm
SFOC: 195[+3%] g/kW • h
SLOC: 0.6 g/kW • h
Start Method: Compressed air
Rotate Direction: Clockwise (aft. end)
Piston Lifting Height: 2600 mm
Emission: IMO Tier II
Bore x Stroke: 300 x 380 mm
SFOC: 195[+3%] g/kW • h
SLOC: 0.6 g/kW • h
Start Method: Compressed air
Rotate Direction: Clockwise (aft. end)
Piston Lifting Height: 2600 mm
Emission: IMO Tier II

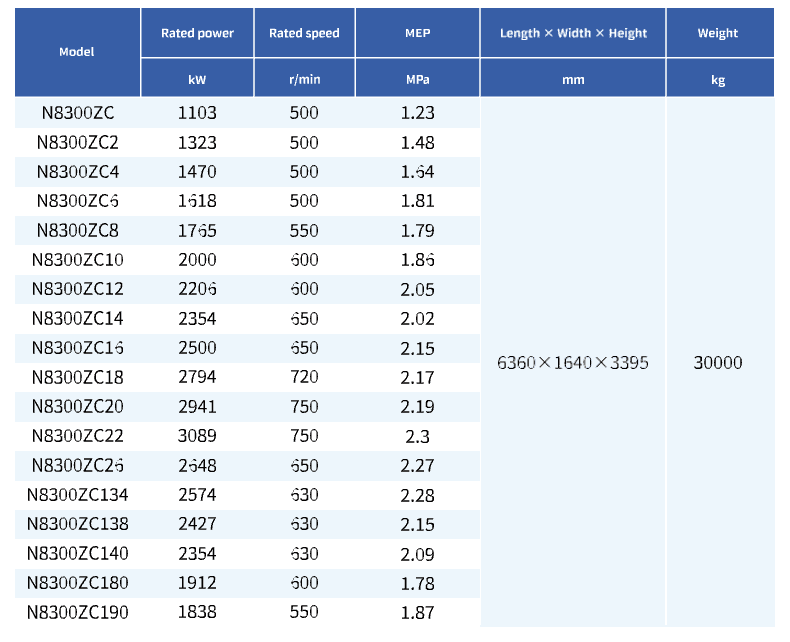

Specifications
Specifications
