Detailed Information
Detailed Information
N8210
N8210
Fuel Type
Fuel Type
Fuel Type
Speed (r/min)
Speed (r/min)
Speed (r/min)
Power (kW)
Power (kW)
Power (kW)
Displacement (L)
Displacement (L)
Displacement (L)
Diesel
Diesel
Diesel
500-1000
500-1000
500-1000
580-1470
580-1470
580-1470
10.39 L
10.39 L
10.39 L
Outline
Outline
Bore x Stroke: 210 x 300 mm
SFOC: 185[+3%] g/kW • h
SLOC: 0.6 g/kW • h
Start Method: Compressed air motor
Rotate Direction: Starboad CW (aft. end), Port CCW (aft. end)
Comp. ratio: 15
Piston Lifting Height: 1650 mm
Emission: IMO Tier II
Bore x Stroke: 210 x 300 mm
SFOC: 185[+3%] g/kW • h
SLOC: 0.6 g/kW • h
Start Method: Compressed air motor
Rotate Direction: Starboad CW (aft. end), Port CCW (aft. end)
Comp. ratio: 15
Piston Lifting Height: 1650 mm
Emission: IMO Tier II
Bore x Stroke: 210 x 300 mm
SFOC: 185[+3%] g/kW • h
SLOC: 0.6 g/kW • h
Start Method: Compressed air motor
Rotate Direction: Starboad CW (aft. end), Port CCW (aft. end)
Comp. ratio: 15
Piston Lifting Height: 1650 mm
Emission: IMO Tier II

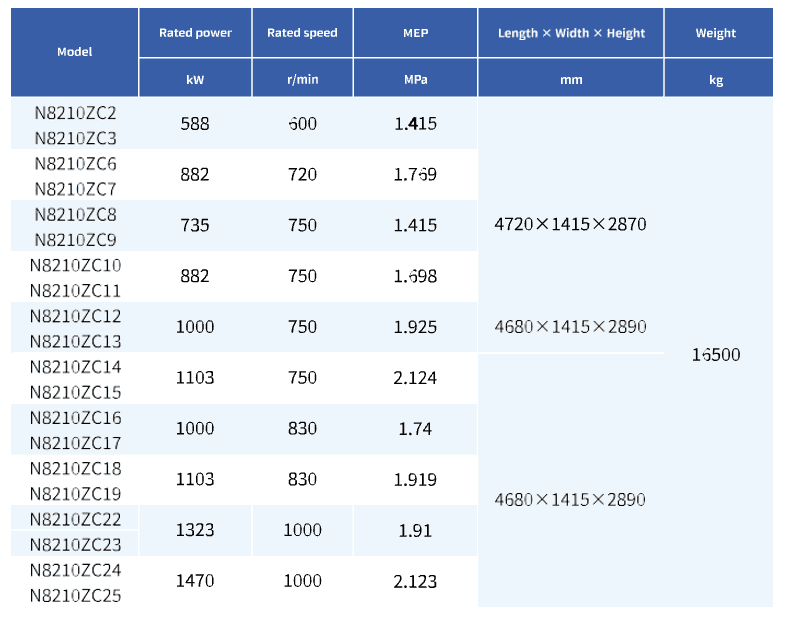

Specifications
Specifications
