Detailed Information
Detailed Information
N6170E
N6170E
Fuel Type
Fuel Type
Fuel Type
Speed (r/min)
Speed (r/min)
Speed (r/min)
Power (kW)
Power (kW)
Power (kW)
Displacement (L)
Displacement (L)
Displacement (L)
Diesel
Diesel
Diesel
1000-1500
1000-1500
1000-1500
210-450
210-450
210-450
4.54 L
4.54 L
4.54 L

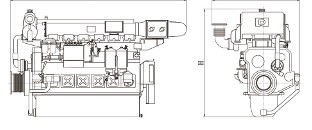

Outline
Outline
Bore x Stroke: 170 x 200 mm
SFOC: 185[+3%] g/kW • h
SLOC: 0.7 g/kW • h
Fuel supply: ECAP
Start Method: Compressed air motor / Electric motor
Rotate Direction: Starboad CW (aft. end), Port CCW (aft. end)
Comp. ratio: 14.5
Emission: IMO Tier II
Bore x Stroke: 170 x 200 mm
SFOC: 185[+3%] g/kW • h
SLOC: 0.7 g/kW • h
Fuel supply: ECAP
Start Method: Compressed air motor / Electric motor
Rotate Direction: Starboad CW (aft. end), Port CCW (aft. end)
Comp. ratio: 14.5
Emission: IMO Tier II
Bore x Stroke: 170 x 200 mm
SFOC: 185[+3%] g/kW • h
SLOC: 0.7 g/kW • h
Fuel supply: ECAP
Start Method: Compressed air motor / Electric motor
Rotate Direction: Starboad CW (aft. end), Port CCW (aft. end)
Comp. ratio: 14.5
Emission: IMO Tier II

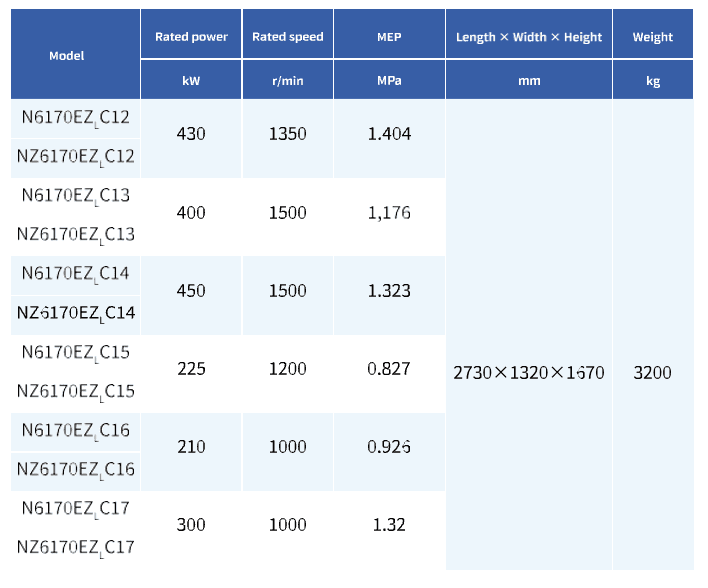

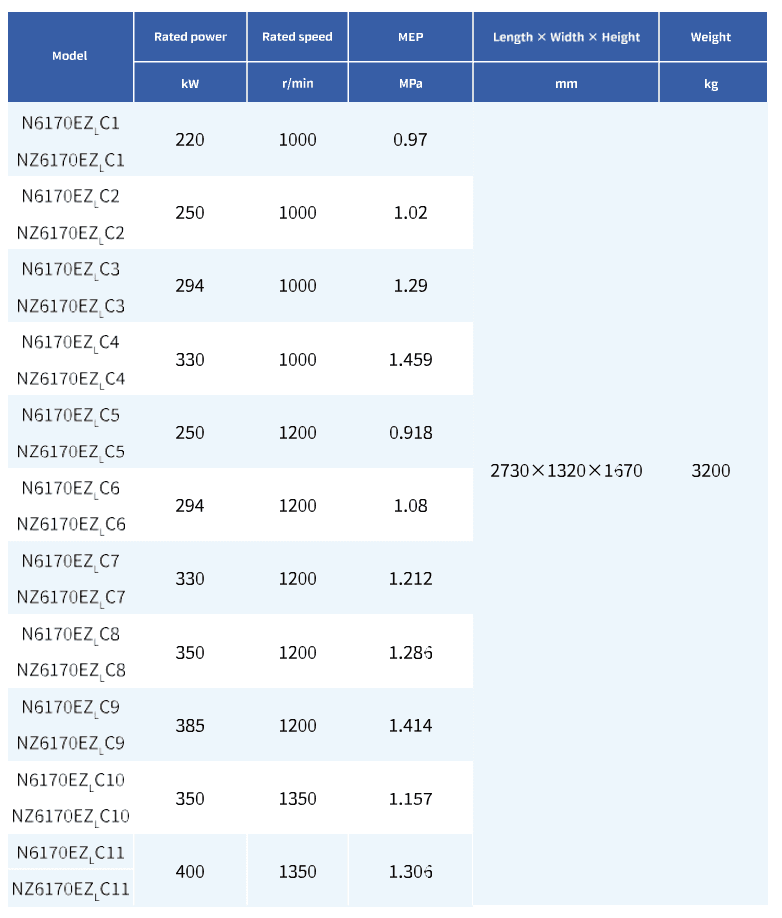

Specifications
Specifications
