N210E
N210E
Fuel Type
Fuel Type
Fuel Type
Speed (r/min)
Speed (r/min)
Speed (r/min)
Power (kW)
Power (kW)
Power (kW)
Displacement (L)
Displacement (L)
Displacement (L)
Diesel
Diesel
Diesel
600-1000
600-1000
600-1000
370-1100
370-1100
370-1100
10.38 L
10.38 L
10.38 L

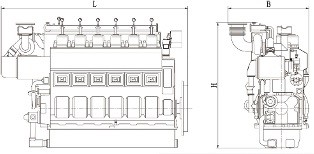

Outline
Outline
Bore x Stroke: 210 x 320 mm
SFOC: 182[+3%] g/kW • h
SLOC: 0.6 g/kW • h
Fuel Supply: EUP
Rotate Direction: Starboad CW (aft. end), Port CCW (aft. end)
Comp. ratio: 15
Piston Lifting Height: 1650 mm
Emission: IMO Tier II
Bore x Stroke: 210 x 320 mm
SFOC: 182[+3%] g/kW • h
SLOC: 0.6 g/kW • h
Fuel Supply: EUP
Rotate Direction: Starboad CW (aft. end), Port CCW (aft. end)
Comp. ratio: 15
Piston Lifting Height: 1650 mm
Emission: IMO Tier II
Bore x Stroke: 210 x 320 mm
SFOC: 182[+3%] g/kW • h
SLOC: 0.6 g/kW • h
Fuel Supply: EUP
Rotate Direction: Starboad CW (aft. end), Port CCW (aft. end)
Comp. ratio: 15
Piston Lifting Height: 1650 mm
Emission: IMO Tier II

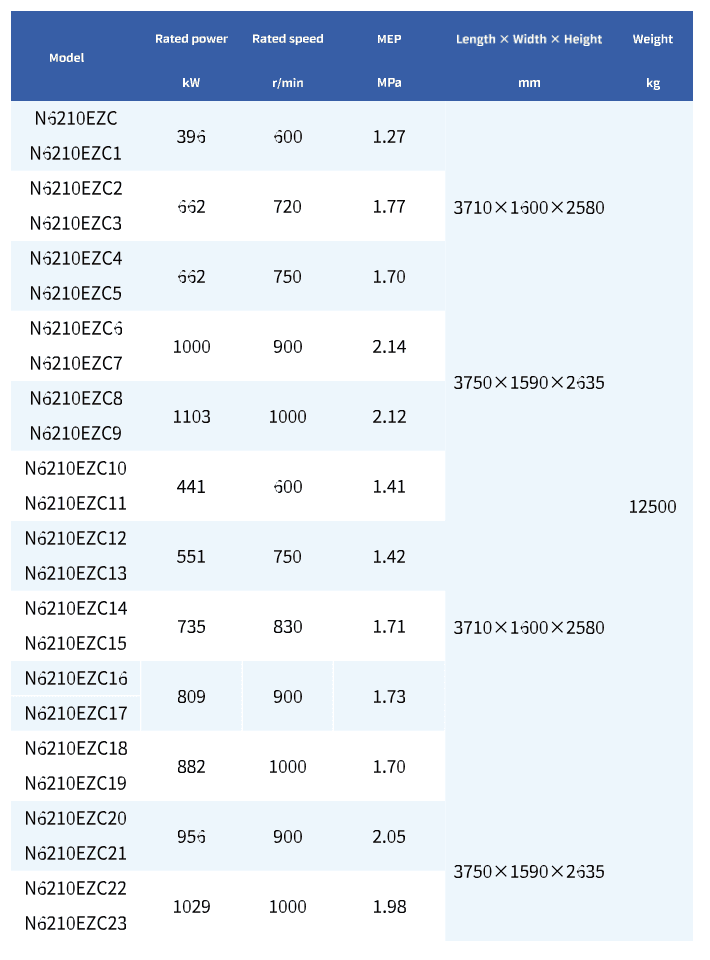

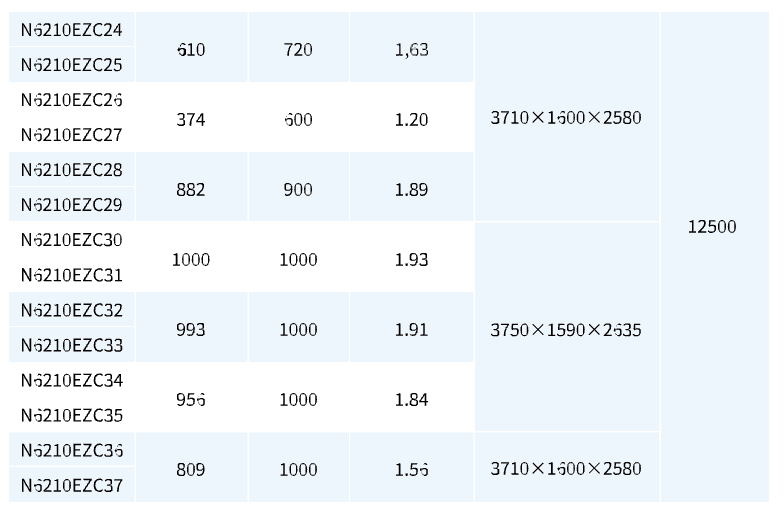

Specifications
Specifications
