Detailed Information
Detailed Information
N170G
N170G
Fuel Type
Fuel Type
Fuel Type
Speed (r/min)
Speed (r/min)
Speed (r/min)
Power (kW)
Power (kW)
Power (kW)
Displacement (L)
Displacement (L)
Displacement (L)
Diesel
Diesel
Diesel
1000-1200
1000-1200
1000-1200
220-450
220-450
220-450
4.54 L
4.54 L
4.54 L

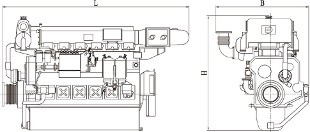

Outline
Outline
Bore x Stroke: 170 x 200 mm
SLOC: 0.6 g/kW • h
Fuel Heat Rate: 8600KJ/kW • h
Fuel Type: LNG CNG
Feature: Intake manifold multi-point injection, spark plug ignition
Rotate direction: Clockwise (aft. end)
Gas source pressure: 5 - 8 bar
Emission: IMO Tier II
Bore x Stroke: 170 x 200 mm
SLOC: 0.6 g/kW • h
Fuel Heat Rate: 8600KJ/kW • h
Fuel Type: LNG CNG
Feature: Intake manifold multi-point injection, spark plug ignition
Rotate direction: Clockwise (aft. end)
Gas source pressure: 5 - 8 bar
Emission: IMO Tier II
Bore x Stroke: 170 x 200 mm
SLOC: 0.6 g/kW • h
Fuel Heat Rate: 8600KJ/kW • h
Fuel Type: LNG CNG
Feature: Intake manifold multi-point injection, spark plug ignition
Rotate direction: Clockwise (aft. end)
Gas source pressure: 5 - 8 bar
Emission: IMO Tier II

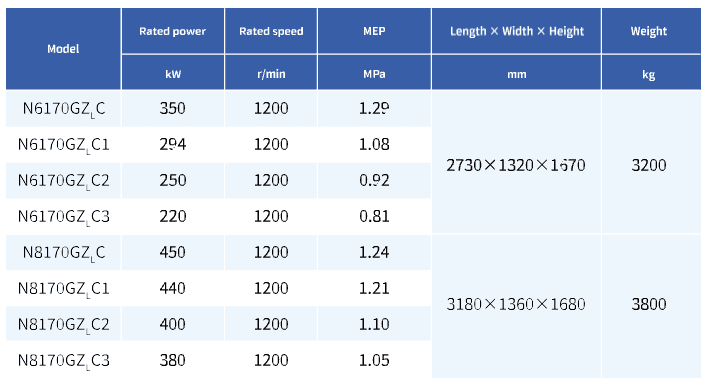

Specifications
Specifications
