Detailed Information
Detailed Information
GN6320
GN6320
Fuel Type
Fuel Type
Fuel Type
Speed (r/min)
Speed (r/min)
Speed (r/min)
Power (kW)
Power (kW)
Power (kW)
Displacement (L)
Displacement (L)
Displacement (L)
Diesel
Diesel
Diesel
500-600
500-600
500-600
1000-1470
1000-1470
1000-1470
30.56 L
30.56 L
30.56 L

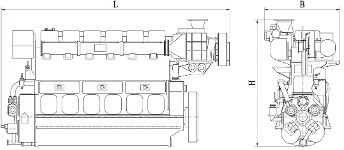

Outline
Outline
Bore x Stroke: 320 x 380 mm
SFOC: 195[+3%] g/kW • h
SLOC: 0.6 g/kW • h
Start Method: Compressed air
Rotate Direction: Starboad CW (aft. end), Port CCW (aft. end)
Comp. ratio: 13
Piston Lifting Height: 2600 mm
Emission: IMO Tier II, Tier III (SCR)
Bore x Stroke: 320 x 380 mm
SFOC: 195[+3%] g/kW • h
SLOC: 0.6 g/kW • h
Start Method: Compressed air
Rotate Direction: Starboad CW (aft. end), Port CCW (aft. end)
Comp. ratio: 13
Piston Lifting Height: 2600 mm
Emission: IMO Tier II, Tier III (SCR)
Bore x Stroke: 320 x 380 mm
SFOC: 195[+3%] g/kW • h
SLOC: 0.6 g/kW • h
Start Method: Compressed air
Rotate Direction: Starboad CW (aft. end), Port CCW (aft. end)
Comp. ratio: 13
Piston Lifting Height: 2600 mm
Emission: IMO Tier II, Tier III (SCR)

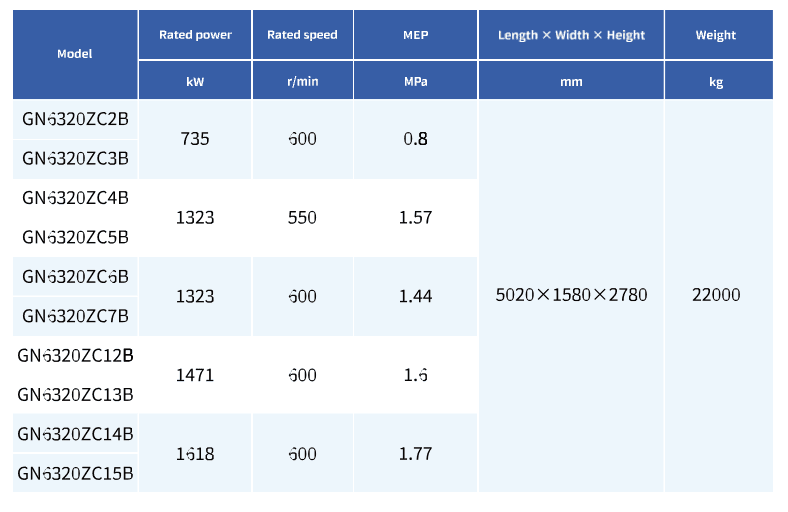

Specifications
Specifications
