Detailed Information
Detailed Information
DN8340
DN8340
Fuel Type
Fuel Type
Fuel Type
Speed (r/min)
Speed (r/min)
Speed (r/min)
Power (kW)
Power (kW)
Power (kW)
Displacement (L)
Displacement (L)
Displacement (L)
Diesel
Diesel
Diesel
520-650
520-650
520-650
2500-4500
2500-4500
2500-4500
40.86 L
40.86 L
40.86 L

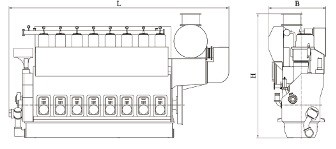

Outline
Outline
Bore x Stroke: 340 x 450 mm
SFOC: 182[+3%] g/kW • h
SLOC: 0.6 g/kW • h
Start Method: Compressed air
Rotate Direction: Clockwise (aft. end)
Piston Lifting Height: 2400 mm
Emission: IMO Tier II, Tier III (SCR)
Bore x Stroke: 340 x 450 mm
SFOC: 182[+3%] g/kW • h
SLOC: 0.6 g/kW • h
Start Method: Compressed air
Rotate Direction: Clockwise (aft. end)
Piston Lifting Height: 2400 mm
Emission: IMO Tier II, Tier III (SCR)
Bore x Stroke: 340 x 450 mm
SFOC: 182[+3%] g/kW • h
SLOC: 0.6 g/kW • h
Start Method: Compressed air
Rotate Direction: Clockwise (aft. end)
Piston Lifting Height: 2400 mm
Emission: IMO Tier II, Tier III (SCR)

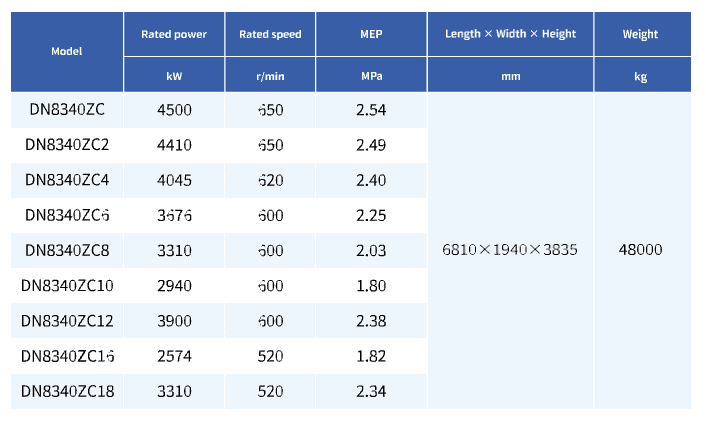

Specifications
Specifications
