Detailed Information
Detailed Information
DN8330
DN8330
Fuel Type
Fuel Type
Fuel Type
Speed (r/min)
Speed (r/min)
Speed (r/min)
Power (kW)
Power (kW)
Power (kW)
Displacement (L)
Displacement (L)
Displacement (L)
Diesel
Diesel
Diesel
520-650
520-650
520-650
2970-4045
2970-4045
2970-4045
38.48 L
38.48 L
38.48 L

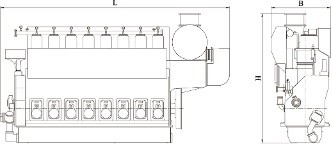

Outline
Outline
Bore x Stroke: 330 x 450 mm
SFOC: 182[+3%] g/kW • h
SLOC: 0.6 g/kW • h
Start Method: Compressed air
Rotate Direction: Clockwise (aft. end)
Piston Lifting Height: mm
Emission: IMO Tier II, Tier III (SCR)
Bore x Stroke: 330 x 450 mm
SFOC: 182[+3%] g/kW • h
SLOC: 0.6 g/kW • h
Start Method: Compressed air
Rotate Direction: Clockwise (aft. end)
Piston Lifting Height: mm
Emission: IMO Tier II, Tier III (SCR)
Bore x Stroke: 330 x 450 mm
SFOC: 182[+3%] g/kW • h
SLOC: 0.6 g/kW • h
Start Method: Compressed air
Rotate Direction: Clockwise (aft. end)
Piston Lifting Height: mm
Emission: IMO Tier II, Tier III (SCR)

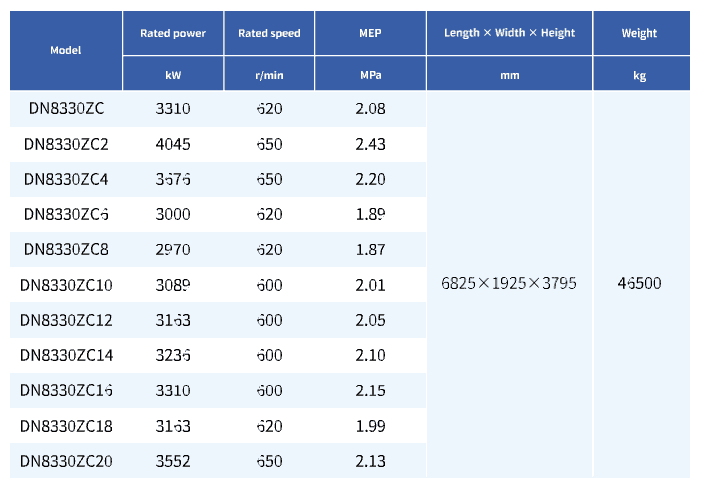

Specifications
Specifications
