Detailed Information
Detailed Information
DN8320
DN8320
Fuel Type
Fuel Type
Fuel Type
Speed (r/min)
Speed (r/min)
Speed (r/min)
Power (kW)
Power (kW)
Power (kW)
Displacement (L)
Displacement (L)
Displacement (L)
Diesel
Diesel
Diesel
550-675
550-675
550-675
2550-3310
2550-3310
2550-3310
30.56 L
30.56 L
30.56 L

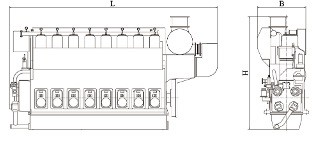

Outline
Outline
Bore x Stroke: 320 x 380 mm
SFOC: 195[+3%] g/kW • h
SLOC: 0.6 g/kW • h
Start Method: Compressed air
Rotate Direction: Clockwise (aft. end)
Piston Lifting Height: 2600 mm
Emission: IMO Tier II, Tier III (SCR)
Bore x Stroke: 320 x 380 mm
SFOC: 195[+3%] g/kW • h
SLOC: 0.6 g/kW • h
Start Method: Compressed air
Rotate Direction: Clockwise (aft. end)
Piston Lifting Height: 2600 mm
Emission: IMO Tier II, Tier III (SCR)
Bore x Stroke: 320 x 380 mm
SFOC: 195[+3%] g/kW • h
SLOC: 0.6 g/kW • h
Start Method: Compressed air
Rotate Direction: Clockwise (aft. end)
Piston Lifting Height: 2600 mm
Emission: IMO Tier II, Tier III (SCR)

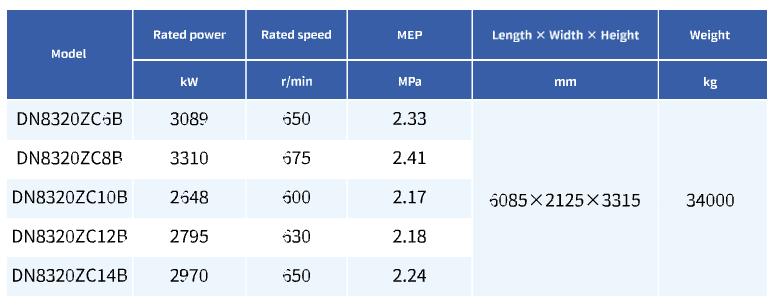

Specifications
Specifications
