Detailed Information
Detailed Information
DF6340
DF6340
Fuel Type
Fuel Type
Fuel Type
Speed (r/min)
Speed (r/min)
Speed (r/min)
Power (kW)
Power (kW)
Power (kW)
Displacement (L)
Displacement (L)
Displacement (L)
Diesel
Diesel
Diesel
550-650
550-650
550-650
2640-3600
2640-3600
2640-3600
43.58 L
43.58 L
43.58 L
Outline
Outline
Bore x Stroke: 340 x 480 mm
SFOC: 182[+5%] g/kW • h
SLOC: 0.6 g/kW • h
Rotate Direction: Clockwise (aft. end)
Fuel Heat Rate: <8600KJ/kW • h (marking point)
Rate of substitution: >85% (50%-100% rated load)
Emission: IMO Tier II, Tier III (SCR)
Bore x Stroke: 340 x 480 mm
SFOC: 182[+5%] g/kW • h
SLOC: 0.6 g/kW • h
Rotate Direction: Clockwise (aft. end)
Fuel Heat Rate: <8600KJ/kW • h (marking point)
Rate of substitution: >85% (50%-100% rated load)
Emission: IMO Tier II, Tier III (SCR)
Bore x Stroke: 340 x 480 mm
SFOC: 182[+5%] g/kW • h
SLOC: 0.6 g/kW • h
Rotate Direction: Clockwise (aft. end)
Fuel Heat Rate: <8600KJ/kW • h (marking point)
Rate of substitution: >85% (50%-100% rated load)
Emission: IMO Tier II, Tier III (SCR)

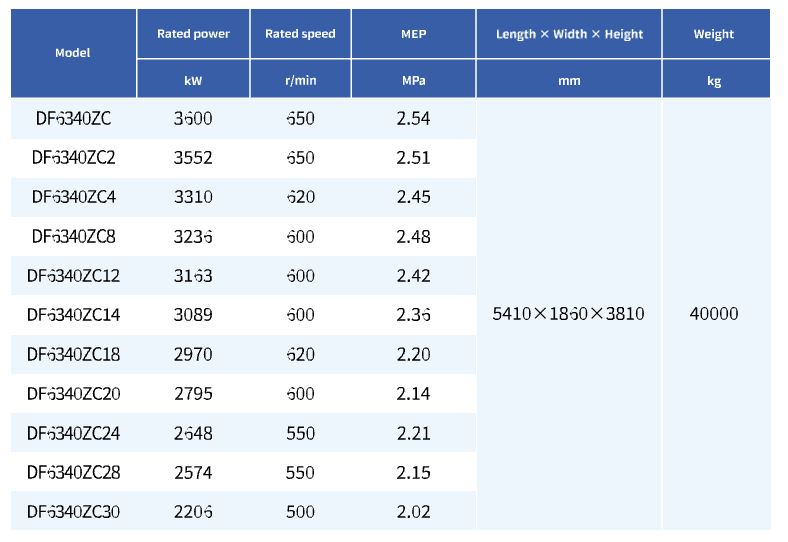

Specifications
Specifications
