Detailed Information
Detailed Information
DF210E
DF210E
Fuel Type
Fuel Type
Fuel Type
Speed (r/min)
Speed (r/min)
Speed (r/min)
Power (kW)
Power (kW)
Power (kW)
Displacement (L)
Displacement (L)
Displacement (L)
Diesel
Diesel
Diesel
750-1000
750-1000
750-1000
500-1100
500-1100
500-1100
10.38 L
10.38 L
10.38 L

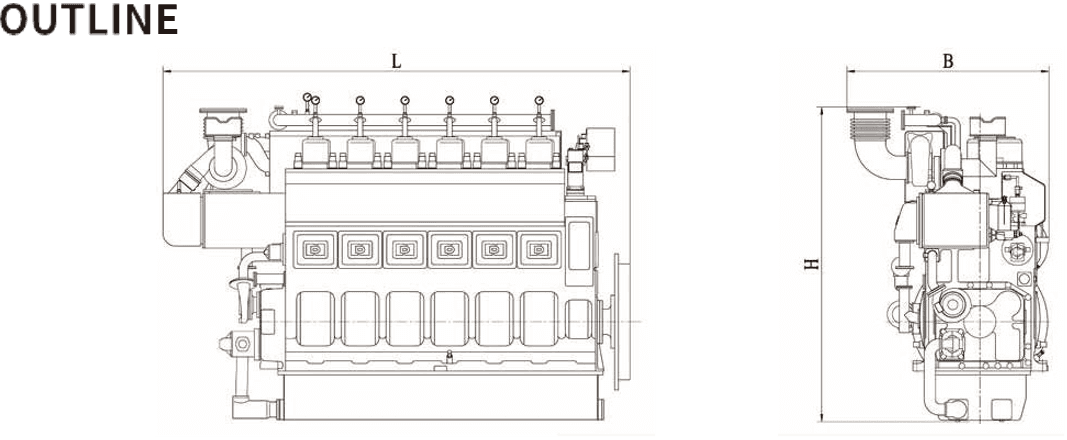

Outline
Outline
Bore x Stroke: 210 x 300 mm
SFOC: 182[+5%] g/kW • h
SLOC: 0.6 g/kW • h
Rotate Direction: Clockwise (aft. end)
Rate of substitution: the dual electronic control technology of oil and gas
Emission: IMO Tier II
Bore x Stroke: 210 x 300 mm
SFOC: 182[+5%] g/kW • h
SLOC: 0.6 g/kW • h
Rotate Direction: Clockwise (aft. end)
Rate of substitution: the dual electronic control technology of oil and gas
Emission: IMO Tier II
Bore x Stroke: 210 x 300 mm
SFOC: 182[+5%] g/kW • h
SLOC: 0.6 g/kW • h
Rotate Direction: Clockwise (aft. end)
Rate of substitution: the dual electronic control technology of oil and gas
Emission: IMO Tier II

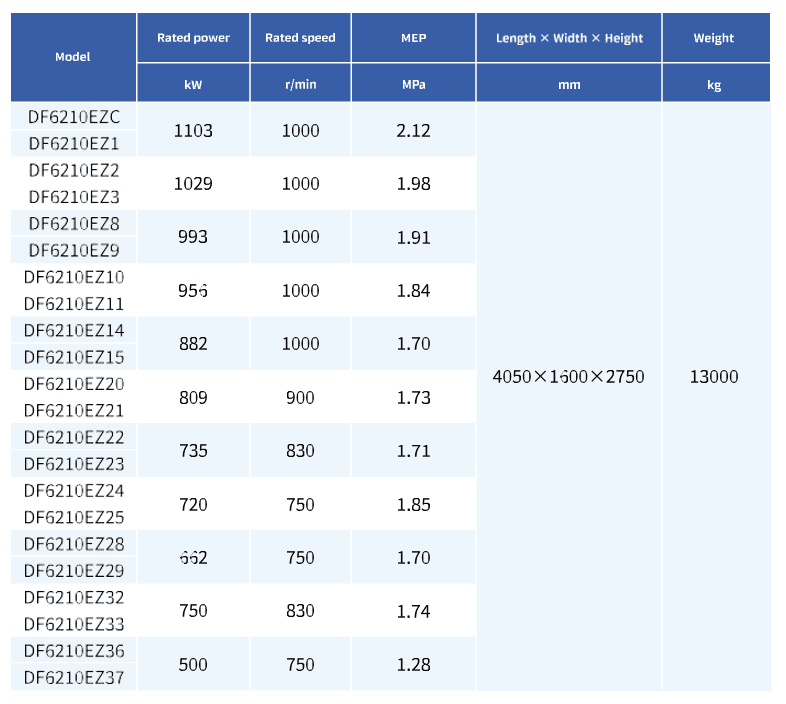

Specifications
Specifications
